Hettich Quadro 4D - 450mm - Left - Soft Close

SKU: 9245363
Description

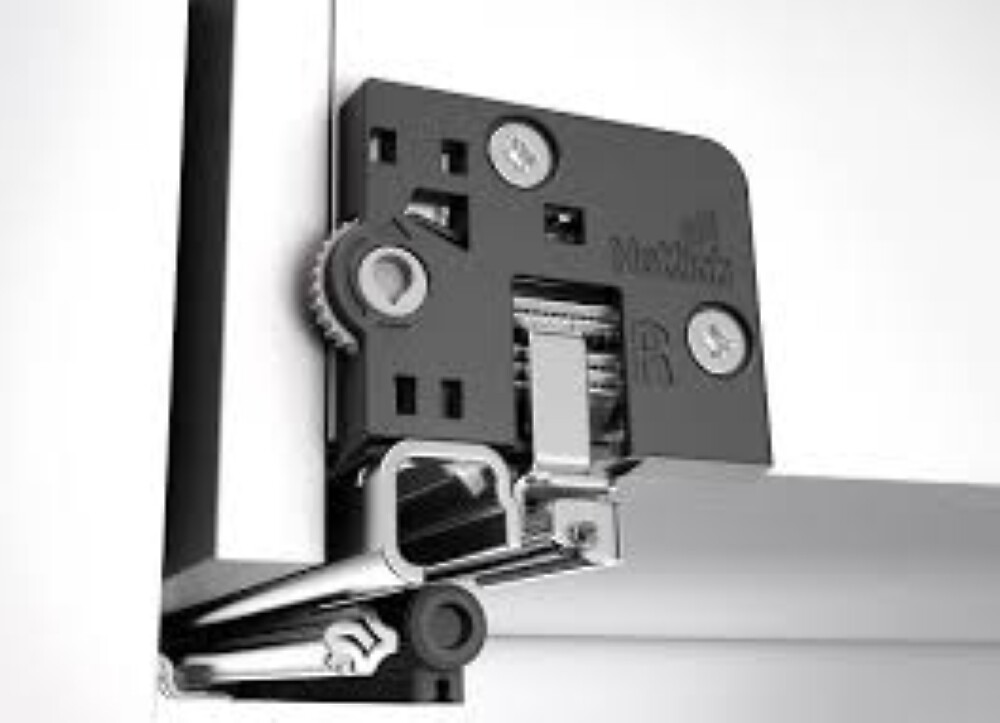

Convenient Slide on installation with 4D catches and tilt adjustment
Integrated Silent System
Load capacity up to 30 kg for standard applications;
Version available for particularly light drawers up to 10 kg
Optional can be retrofitted with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; can be retrofitted with synchronisation
Tool-less, intuitive adjustment of the drawer front panel:
Height adjustment up to + 2 mm,
Side adjustment up to +/- 1.5 mm (max. drawer side profile thickness 15 mm),
Depth adjustment up to +/- 2 mm,
Tilt adjustment
Load capacity to EN 15338, Level 3
Galvanised steel

Advice:
4D catch and tilt adjuster must be ordered separately

View related products
Main Product Features
Suggested Retail Price: $ 21.96

Please Login to view your pricing

Read more about our delivery and return policy in FAQ section


Additional Details

Brand
Hettich
Type
Undermount Slides
Finish / Colour
Zinc
Length
450mm - 18"
Closing Type
Soft-Close
Load Capacity
30kg
