Hettich Quadro 4D - 250mm - Left & Right - Soft Close

SKU: 9245382
Description

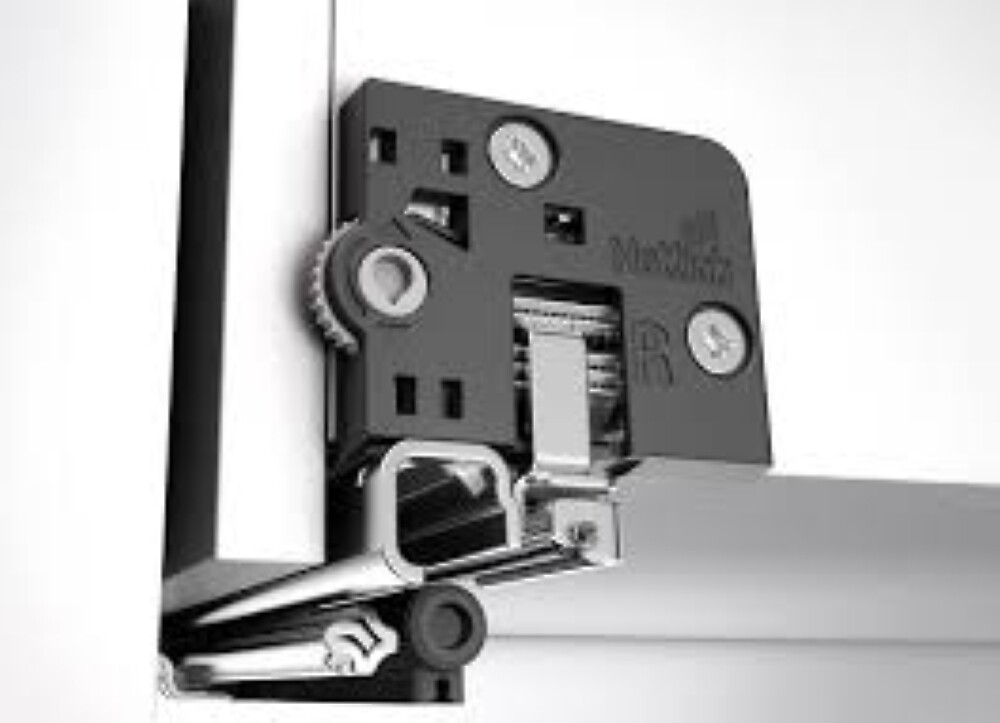

  • Convenient Slide on installation with 4D catches and tilt adjustment
  • Integrated Silent System
  • Load capacity up to 30 kg for standard applications;
    Version available for particularly light drawers up to 10 kg
  • Optional can be retrofitted with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; can be retrofitted with synchronisation
  • Tool-less, intuitive adjustment of the drawer front panel:
    Height adjustment up to + 2 mm,
    Side adjustment up to +/- 1.5 mm (max. drawer side profile thickness 15 mm),
    Depth adjustment up to +/- 2 mm,
    Tilt adjustment
  • Load capacity to EN 15338, Level 3
  • Galvanised steel
  • Box Qty 1 Pair



Advice:

  • 4D catch and tilt adjuster must be ordered separately
View related products
Main Product Features
Suggested Retail Price: $ 28.92

Please Login to view your pricing

hettich-quadro-4d-v6-soft-close-250-mm-left-and-right.pdf

Read more about our delivery and return policy in FAQ section


Additional Details

Brand
Hettich
Type
Undermount Slides
Finish / Colour
Zinc
Length
250mm - 10"
Closing Type
Soft-Close
Load Capacity
30kg
