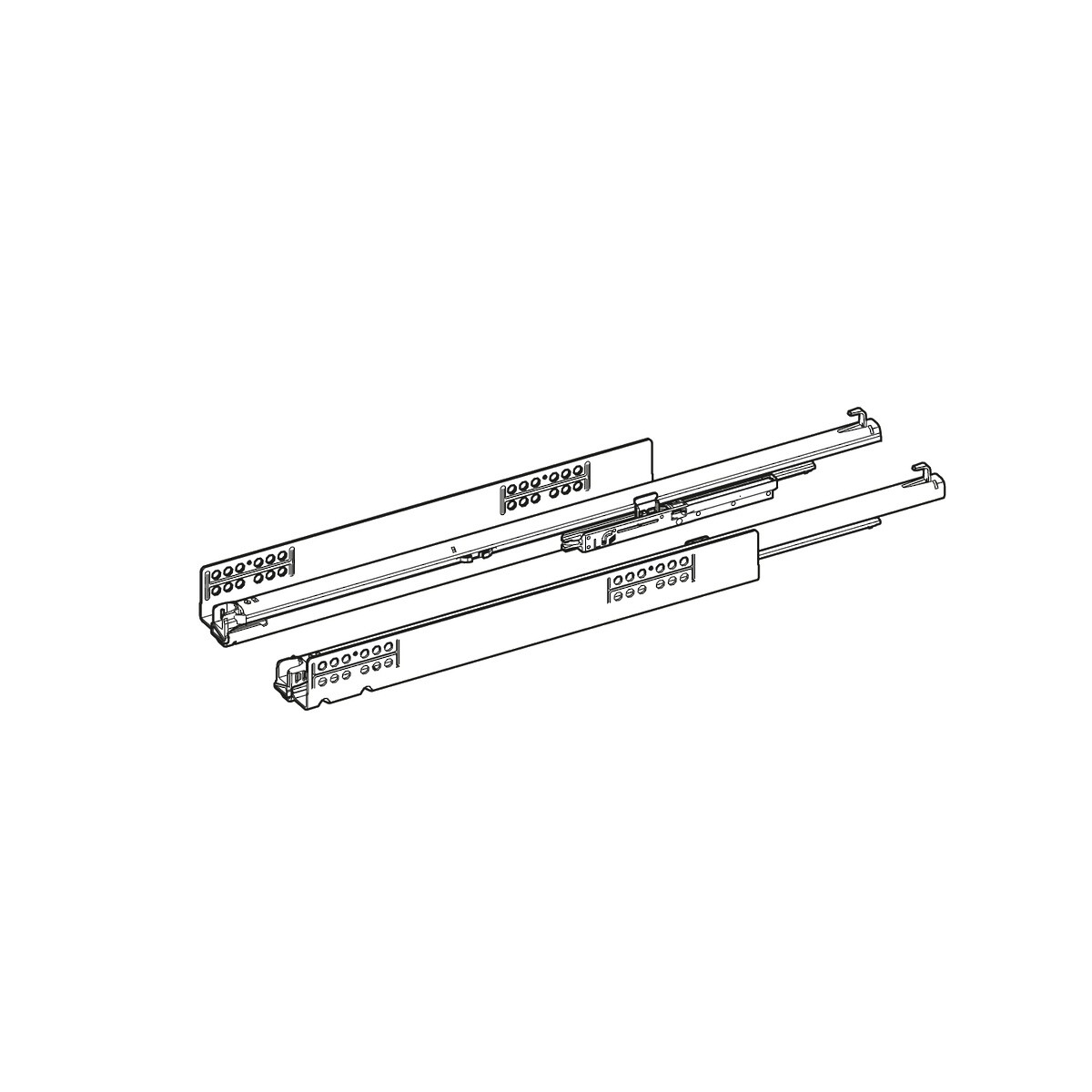

Quadro You 30kg - 300mm Left & Right

• Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
• Integrated Silent System
• Tool-less height adjustment up to + 3 mm
• Optional: Push to open Silent opening system
• Optional: synchronisation / multi synchronisation for Push to open
• Optional: pull-out shelf support / pull-out shelf locating catch
• Load classes XS (10 kg) / M (30 kg)
• Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
• Suitable for drawers with a side profile thickness of up to 16 mm
• Load capacity to EN 15338, Level 3
• Galvanised steel

Set comprises:

• 1 Quadro V6 YOU drawer runners, left and right

Advice:

• Catch for use with wooden drawer can be ordered separately
• Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately
• Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
• Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately
• Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20
