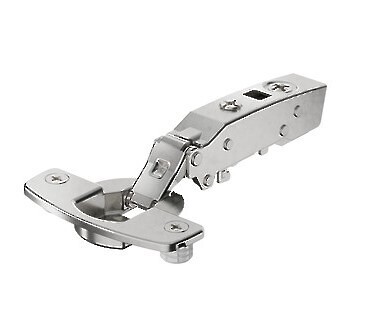

Hettich thin door hinge, door thickness from 10 mm, soft closing, full overlay, 110°, dowel (8 ø x 8) - Blum Pattern

Sensys thin door hinge, door thickness from 10 mm
With integrated Silent System, with self closing feature (Sensys 8646i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 10-19 mm
Door mounting option overlay (B 12.5 mm)
TB - drilling pattern 45 x 9.5 mm
Cup depth 7.8 mm
Installation for pressing in (TB 53)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
